Durable 380v Automatic Wire Mesh Welding Machine High Output

Brand Name : APBWR

Model Number : GF1200

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1 UNIT

Price : $5000-50000

Payment Terms : L/C,T/T

Supply Ability : 1000+ /year

Delivery Time : 14-21DAYS

Packaging Details : Pallets or wooden crates as per customer's requirements.

Product name : Glassland fence mesh welding machine

Key word : Automatic

Motor : 2.5kw

Boundary dimension : 3400*2800*2500（mm）

Weight : 3.8t

Voltage : 380v

Wire dia : 1.8-3.2mm

Mesh size : 20x25mm

Contact Now

Durable Automatic Wire Mesh Welding Machine High-Output

1.Glassland Fence Mesh Welding Machine Introduction:

The grassland fence machine is also called field fence machine,cattle fence machine or farm fence machine.This machine can produce grassland fence which is widely used for preventing environmental balance,preventing landslide and used as livestock fence.

Our machine adopts sophisticated computer control,advance manufacturing technique.It have the featurers of novelty,high degree of automation, reliaility and operational safety, long life and easy operation.
2.Machine Details:

Roll mesh collection system

Roll mesh collection system will automatically adjust the tightness according to the roll mesh diameter,It's more convenient to take away the roll mesh.

Cross wire test system

Every cross wire has a detection system,In case of cross wire loss, the machine will stop automatically. The detection distance of each photoelectric sensor can be adjusted
Wire twisting system
The screw die and rack are made of special materials to ensure the long-term operation of the machine.
Wire feeding system
Linear guide rail is used for wire feeding system,It ensures smooth wire feeding and adjustable wire feeding length.
Wire straightening system
Both the cross wire and line wires are straight.This can make the mesh size more accurate and the wire mesh more beautiful.
Wire tightness testing system
Every wire will be tested for tightness. If the wire is tight, the machine will stop automatically.We can clear the fault easily.
Wire pay system
The pay off reel is produced by our factory, which contains the bearing design to make the reel rotate smoothly and reduce the resistance
Machine control system
The control system is composed of Chinese and English,the spacing of the cross wires can be adjusted on the touch screen.
Air heating system
Each machine is equipped with an air heater, and the pneumatic components can operate normally under low temperature.
Mechanical dismantling
The machine is divided into upper and lower parts, which can be separated to facilitate the loading of containers.The connecting lines are all at the internal connection of the machine.
3.Machine Specifications:

Model
GF10-1490
GF12-1652
GF13-1880
GF18-2000
GF21-2400
Ineer wire diamerer
1.8-2.5mm
1.8-2.5mm
1.8-2.5mm
1.8-2.5mm
1.8-2.5mm
Edge wire diameter
2.0-3.5mm
2.0-3.5mm
2.0-3.5mm
2.0-3.5mm
2.0-3.5mm
Fence height
1490mm
1652mm
1880mm
2000mm
2400mm
Produce efficiency
45 row/min
45 row/min
45 row/min
45 row/min
45 row/min
Distance weft wires
50mm-500mm (Adjustable)
50mm-500mm (Adjustable)
50mm-500mm (Adjustable)
50mm-500mm (Adjustable)
50mm-500mm (Adjustable)
Distance warp wires
130*3+160+180*3+200*2 (mm)
89+89+101+114+127+140+153+178+203+229+229 (mm)
89+89+101+114+127+140+153+178+203+229*3 (mm)
100*13+150*2+200*2 (mm)
100*15+150*2+200*3(mm)
Line wire number
10
12
13
18
21
Weight
3000KG
3500KG
3800KG
4000KG
4500KG
Dimensions
3.0x3.0x2.4(m)
3.2x3.0x2.4(m)
3.4x3.0x2.4(m)
3.6x3.0x2.4(m)
3.9x3.0x2.4(m)
We can make machines according to customers' requirements

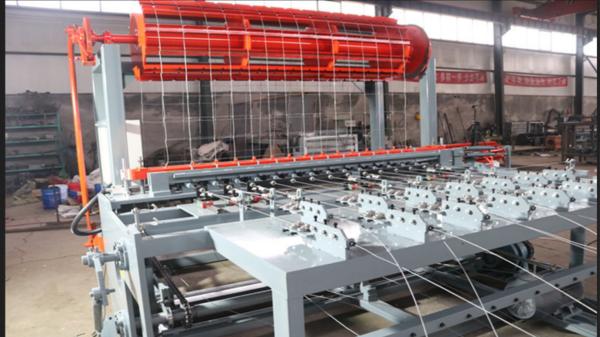

5.Detailed images:

Durable 380v Automatic Wire Mesh Welding Machine High Output

Durable 380v Automatic Wire Mesh Welding Machine High Output
