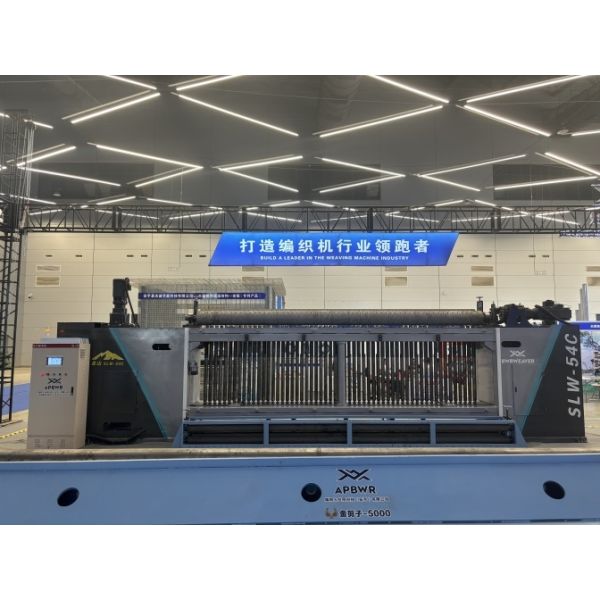

60*80 Mesh Size Gabion Box Machine 5400mm Width Easy Operate
Gabion box Machine Overview
A gabion box machine is an automated equipment used to produce gabion mesh, which realizes the precise manufacturing of gabion mesh through CNC technology The working principle of the gabion machine is to adopt advanced CNC systems, and through programming to control the precise movement of the machine, to achieve the automation of gion mesh production. The machine can automatically complete the weaving, cutting, welding and other processes of gabion mesh according to the preset procedures, greatly saving the labor cost and the production efficiency.
We specialize in the R&D and manufacturing of high-performance gabion box machines, widely used in hydraulic engineering, slope protection, infrastructure construction, and eco-restoration projects. Featuring a self-developed 5-axis CNC linkage system, our machines lead the industry in weaving precision, operational stability, and intelligent automation. Combined with full CNC automation, modular design, and eco-friendly operation, we deliver flexible, efficient, and sustainable gabion mesh solutions for global clients.
Gabion box Machine Service
To meet diverse customer requirements in precision, efficiency, and weaving complexity, we offer 3-axis and 5-axis linkage drive CNC gabion mesh machines. We recommend evaluating your specific production needs before selection. Customized configuration services are also available. Please refer to the comparison chart below for more details.
We offer a range of auxiliary equipment designed to support the efficient operation of gabion mesh production lines. Customers can flexibly select and customize configurations based on their specific production needs, creating the optimal solution to enhance overall efficiency and product quality.
Gabion box Machine Performance Parameters
| Parameter | Specification (EN) | Description (EN) |
编织幅宽范围
Weaving Width | 5200 mm- | Standard effective weaving width |
丝径范围
Wire Diameter Range | 1.5–4.5 mm (varies by spec) | Varies depending on weaving range and specification |
网孔规格
Mesh Size Specification | 6.6, 6.8, 7, 7.2, 8.4, 8.6, 8.8, 9, 9.2, 9.4, 10.2, 10.6, 11.6 mm | Customizable to meet various gabion requirements |
扭绞方式
Twisting Method | 3 twists, 5 twists, long or short pitch | Available in 3-twist, 5-twist, long or short twist patterns |
运行速度
Operating Speed | Approx. 70 cycles/min | Actual speed varies based on mesh width and wire diameter |
最大产量
Maximum Output | 320 m/hour | Theoretical maximum output, varies with operating conditions |
电机功率
Motor Power | 15 KW × 1, 11 KW × 4 | 1 main motor and 4 auxiliary motors |
自动暂停系统
Auto Pause System | ✔ Yes / □ No | Stops automatically in case of fault or wire breakage |
自动供油系统
Auto Lubrication System | ✔ Yes / □ No | Automatic lubrication to reduce maintenance needs |
整机尺寸
Machine Dimensions | 9.79 × 1.40 × 3.07 m | Length × Width × Height |
整机净重
Net Weight | 18.5 tons | Net weight (excluding packaging) |
数控系统
CNC System | Self-developed electronic cam system | Customizable based on customer requirements |
