High Speed Light Duty Metal Wire Mesh Loom Enhanced 1600B

High Speed Light Duty Metal Wire Mesh Loom Enhanced 1600B

1.High Speed Light Duty Metal Wire Mesh Loom Enhanced 1600B Introduction:

Our fully control system metal wire weaving machines are primarily categorized into two series: the B-Type (Light-Duty Model) and the D-Type (Medium-Duty Model).Borth models are equipped with a PLG programmable control system, which utilizes servo motors to precisely control web winding and warp feeding while automatically adjusting mesh tension, significantly improving weaving accuracy. For example, the D-type machine can accurately weave plain weave fabrics ranging from 10 to 100 mesh/inch, and the B-type machine can handle plain weave fabrics from 30 to 500 mesh/inch. With a weaving speed of up to 120 revolutions per minute, production efficiency is improved by over 70%.

2. High Speed Light Duty Metal Wire Mesh Loom Enhanced 1600B Overview:

This model is a high-performance, easy Mesh Changeover: User-friendly design allows for quick adjustments to mesh size and weave pattern (plain, twill, etc.), minimizing downtime.high-precision light-duty weaving machine, specifically engineered for the precision metal wire mesh industry. At its core is an advanced Fully Digital Programmable Control System, which utilizes servo motors to accurately drive key operations such as web winding and warp feeding, enabling fully automatic and intelligent tension regulation.

3.High Speed Light Duty Metal Wire Mesh Loom Enhanced 1600B Key Features & Advantages:

· Precision Weaving: Superior tension control ensures exceptional mesh uniformity, allowing for accurate and stable weaving of fabrics within a range of 40 to 400 mesh using standard wire diameters.

· High Efficiency: With a maximum operational speed of 120 rpm, it boosts production efficiency by over 70% compared to conventional machinery.

· User-Friendly Operation: Critical parameters like mesh count and tension settings are digitally set and stored via a touch-screen interface, ensuring simple operation, precise adjustments, and excellent repeatability.

· Versatility: Capable of weaving various complex patterns, including but not limited to Plain Weave, Twill Weave, and Dutch Weave.

· Enhanced Productivity: The integrated Continuous Web Removal (Uninterrupted Doffing) Systemand digital length display significantly reduce non-productive auxiliary time, maximizing overall equipment effectiveness (OEE).

· Reliability & Durability: Designed for longevity and stable operation, it features high-quality components such as a Bearing-Type Crankshaft, making it suitable for sustained continuous production.

4. High Speed Light Duty Metal Wire Mesh Loom Enhanced 1600B Applications:

The high-quality metal mesh produced by this machine is widely used in applications demanding precise filtration, screening, and separation across various industries, including:

· Petroleum & Chemical Processing: Filters, screens, separators.

· Aerospace: High-temperature filtration, shielding meshes, safety guards.

· Mechanical Manufacturing: Precision filters, vibrating screens.

· Automotive Industry: Catalyst support meshes, filter elements.

· Electronics: EMI/RFI shielding, protective guards.

5.High Speed Light Duty Metal Wire Mesh Loom Enhanced 1600B Products Parameter:

6. Detailed Images:

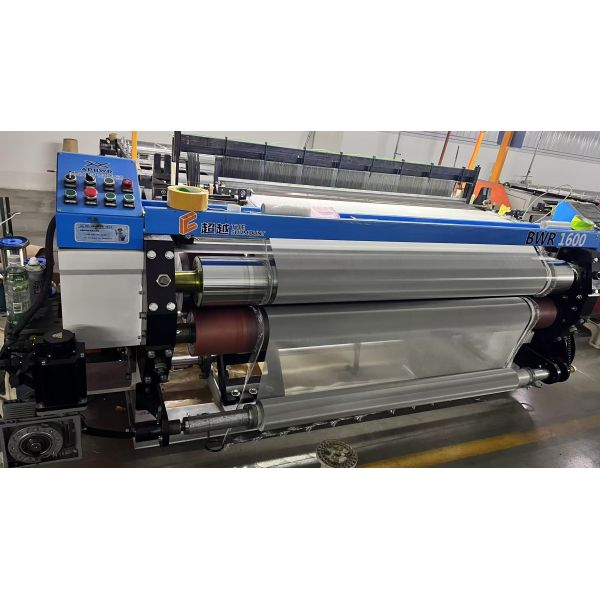

1600b wire weaving machine

1600b wire mesh loom machine

light duty wire weaving machine

High Speed Light Duty Metal Wire Mesh Loom Enhanced 1600B Images
