High Capacity Metal Wire Mesh Weaving Machine Quick Turnaround 1300B
High Precision Light Duty Metal Wire Mesh Weaving Machine Quick Turnaround
1.Light Duty Metal Wire Mesh Loom Product Introduction
Engineered for accuracy and uptime, the CNC Wire Cloth Loom uses industrial PLC control with servo drives to synchronize critical motions. The platform supports plain, twill and Dutch patterns, and typical ranges include fine wire capability down to 0.01 mm (material dependent). A stable mechanical base and balanced drivetrain minimize vibration for cleaner selvedges and flatter cloth.
2.Light Duty Metal Wire Mesh Loom Applications:
The high-quality metal mesh produced by this machine is widely used in applications demanding precise filtration, screening, and separation across various industries, including:
· Petroleum & Chemical Processing: Filters, screens, separators.
· Aerospace: High-temperature filtration, shielding meshes, safety guards.
· Mechanical Manufacturing: Precision filters, vibrating screens.
· Automotive Industry: Catalyst support meshes, filter elements.
· Electronics: EMI/RFI shielding, protective guards.
3.Light Duty Metal Wire Mesh Loom Products Parameter:
| Feature Category | Light-duty Loom (Model B) | Heavy-duty Loom (Model D) |
| Mesh Width | 1300mm 1600mm | 1300mm 1600mm |
| Harness System | Positive (Overhead) | Negative (Bottom Cam) |
| Web Removal Method / Doffing Method | Continuous Web Removal or Direct Winding | Continuous Web Removal or Direct Winding |
| Wire Diameter Range | Continuous Web Removal | 0.01 - 0.2 mm | 0.1 - 0.6 mm |
|
| Direct Winding | 0.03 - 0.2 mm | 0.1 - 0.3 mm |
| Mesh Count Range | Plain Weave | 30 - 500 mesh/inch | 10 - 100 mesh/inch |
|
| Twill Weave | 30 - 635 mesh/inch | 20 - 100 mesh/inch |
|
| Dutch Weave | 100 - 2300 mesh/inch | 30 - 500 mesh/inch |
| Beating-Up Frequency | Max. 120 r/h | Max. 100 r/h |
| Motor Power | 2.2kw | 2.2kw |
| Standard Configuration | Crankshaft Type | Bushing Type |
|
| Side Frames | Casting Wall Plates |
|
| Tension System | Tension Sensor |
|
| Rapier Head Type | Carbon Fiber |
|
| Drive Type | Fully Digital Control (CNC) |
4.Quick FAQ
Q1. What wire materials can your weaving machines handle?
Stainless steel (e.g., SS304/316), low-carbon and galvanized steel, aluminum, brass, copper, and some nickel-based alloys (process-dependent). Actual feasibility depends on wire diameter, tensile strength, surface finish, and spool quality. We validate specs via sample or trial run.
Q2. I’m new to wire mesh—how do I choose the right machine?
Start from your application and spec:
- Mesh count & weave (Plain / Twill / Dutch)
- Wire diameter range & material
- Working width (customizable; typical 1.3–1.6 m)
Throughput target & roll/take-up preference (straight-roll / endless)
As a rule of thumb: B-Type (Light-Duty) for fine wires & higher counts; D-Type (Heavy-Duty) for thicker wires & longer continuous runs. Share your target mesh and wire—our team will map to a base model + options.
Q3. What mesh range do the machines support?
Typical capability (project-dependent):
- B-Type (Light-Duty): Plain ~30–500 mesh/in; supports Twill/Dutch with fine wires.
- D-Type (Heavy-Duty): Plain ~10–100 mesh/in; supports Twill/Dutch with thicker wires.
We confirm final ranges after evaluating wire/material and quality targets.
Q4. What if the machine has an issue overseas?
We provide remote diagnostics (video call, log review), guided troubleshooting, and spare-parts support. If needed, we can arrange an engineer visit subject to scheduling and service terms.
Q5. What about warranty and spare parts?
Standard warranty terms are available upon request. We recommend a start-up spare kit (consumables & critical parts) to minimize downtime.

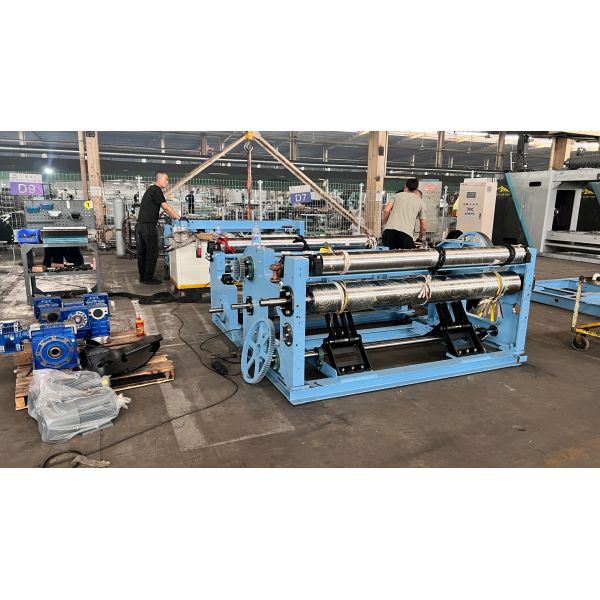

5. Detailed Images:
